3-D CAM System FFCAM

Options

STL Model Machining

It is possible to recognize the model with a mix of polygon and parasolid models as the machining form and generate machining paths.
Using this feature, polygon models which have the advantage of form expression can be used for the overall design and parasolid models which have the advantage of accuracy can be used for parting surfaces and model structure to employ both advantages when designing a model.

KEY features


Flow of data

Machining Examples

Machining from Digitized data

  1. Direct scanning on component
  2. Design by CAD system (Other products).
  3. Processing of high volume STL data.
  4. Processing by High Speed and High Accurate MC.

Machining from Medical data

Created using the medical image processing software (other products).
I hope the above is useful to you.
Should you need any further information, please do not hesitate to contact me.

Contact Us By Phone : +81-3-3724-3653
Contact Us By E-mail : ugi-sp@makino.co.jp

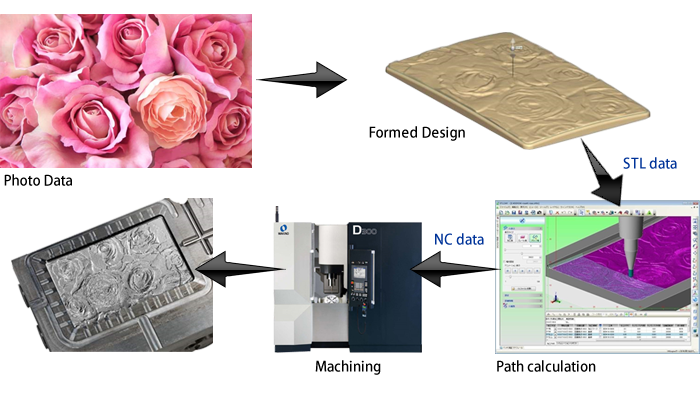

Design example using a Photo

The machining by STLCAM for polygons mapped

Machining Examples
Create a metal relief from the photograph of the cherry trees.
For the initial trial, STL data was smaller than now.

Sakura Relief

  • Machine : V33
  • Material : S55C
  • Cycle time : 15h 52min.
  • Tool : 4 kinds , 5 pc
  • Size : 100 x 100
  • STL data size : 79.9MB
  • No. of polygon : 1,677,696
Scanning the ginkgo skin in 3D digitizer scanner (other products).
We were cutting for the reproduction test.

Bark scan data

  • Machine : V56i
  • Material : PX5
  • Cycle time : 12h 3min.
  • Tool : 4 kinds , 6 pc
  • Size : 370 x 95
  • STL data size : 1.46GB
  • No. of polygon : 31,456,804
It can output NC-Data for models from an picture(ray scales) by CAD.

Galusha pattern relief

  • Machine : V22-5XR
  • Material : NAK80
  • Cycle time : 8h 14min.
  • Tool : 3 kinds , 3 pc
  • Size : D70 x 50
  • STL data size : 399MB
  • No. of polygon : 8,382,768
It can output NC-Data for models from an picture by CAD.
The realistic texture of the leather can be easily mistaken as the real.

Leather pattern graphite

  • Machine : V22 GRAPHITE
  • Material : GRAPHITE TTK-8
  • Cycle time : 27h 19min.
  • Tool : 4 kinds , 5 pc
  • Size : 75 x 150
  • STL data size : 26.4.5MB
  • No. of polygon : 5,549,978
